What Is a Task State in AWS Step Functions? Complete Tutorial and Examples

AWS Step Functions help developers orchestrate workflows using state machines. At the center of most workflows is the Task state, the state type responsible for actually doing work. Whether you are invoking a Lambda function, sending a message to SQS, calling Amazon Bedrock, or publishing an EventBridge event, chances are you are using a Task state.

In this guide, you will learn:

What a Task state is
How Task states work
Common Task state integrations
How to create a Task state
Best practices for error handling and retries
How to test Task states locally before deploying to AWS

What Is a Task State?

A Task state in AWS Step Functions represents a single unit of work inside a workflow.

Unlike states such as Choice, Pass, or Wait, which primarily control logic or flow, a Task state performs an actual action. This action usually involves invoking another AWS service or external system.

Common examples include:

Running an AWS Lambda function
Sending messages to Amazon SQS
Publishing events to EventBridge
Calling Amazon Bedrock models
Starting ECS or Batch jobs
Triggering nested Step Functions workflows
Making HTTP API calls

A Task state is defined in Amazon States Language (ASL) using the "Type": "Task" property.

Here is a basic example:

{
  "StartAt": "ProcessOrder",
  "States": {
    "ProcessOrder": {
      "Type": "Task",
      "Resource": "arn:aws:lambda:us-east-1:123456789012:function:processOrder",
      "End": true
    }
  }
}

{
  "StartAt": "ProcessOrder",
  "States": {
    "ProcessOrder": {
      "Type": "Task",
      "Resource": "arn:aws:lambda:us-east-1:123456789012:function:processOrder",
      "End": true
    }
  }
}

JSON

In this example:

The workflow starts at ProcessOrder
The Task state invokes a Lambda function
The workflow ends after the task completes

How Task States Work

A Task state typically follows this sequence:

Receives input JSON from the previous state
Executes an action
Waits for the action to complete
Returns output JSON
Passes the output to the next state

This makes Task states the execution engine of Step Functions workflows.

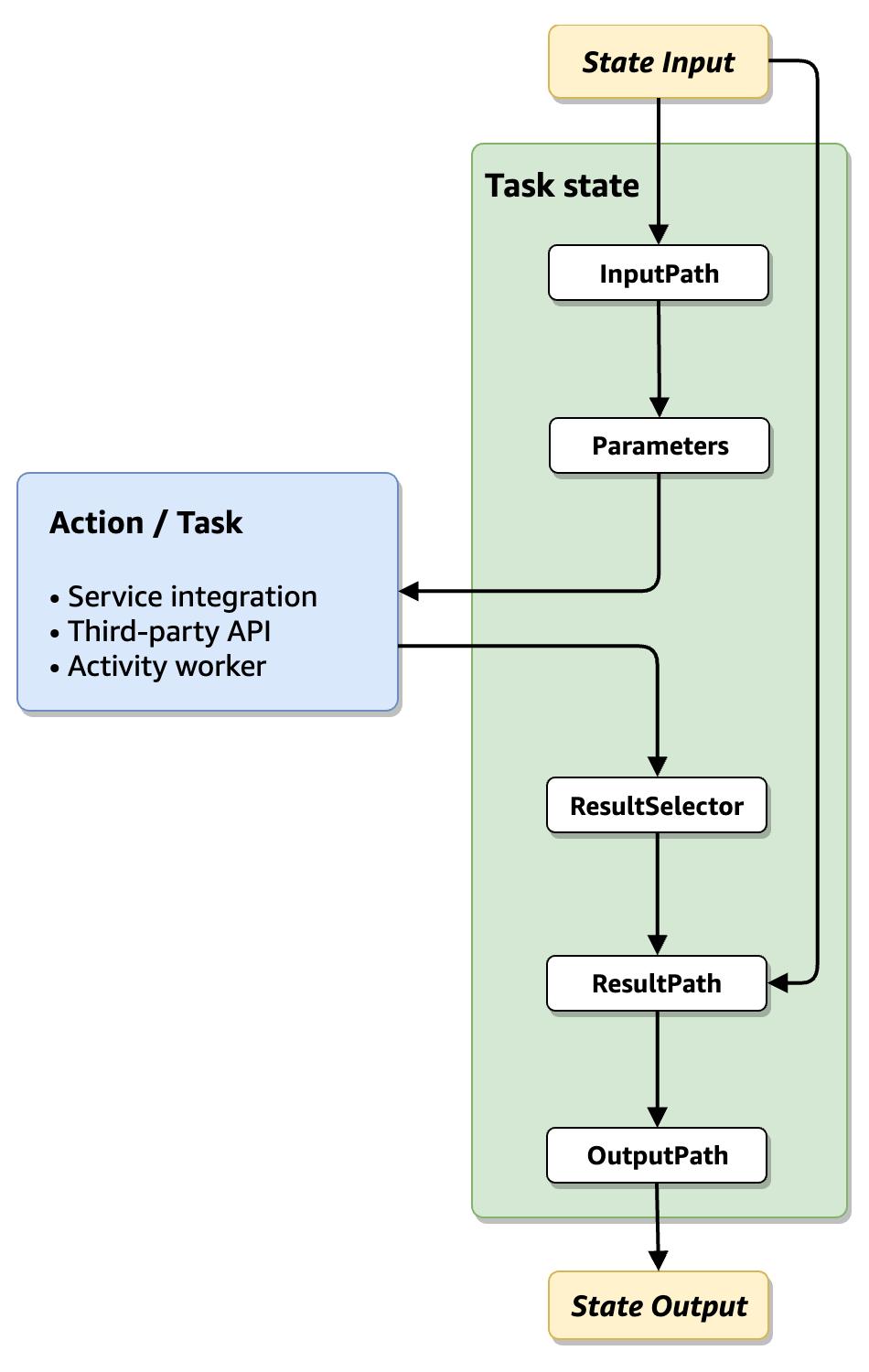

Here is a simplified flow:

Anatomy of a Task State

Most Task states contain these properties:

Property	Purpose
`Type`	Defines the state type (`Task`)
`Resource`	Specifies the AWS service or integration
`Parameters`	Sends structured input
`ResultPath`	Controls where output is stored
`Retry`	Automatically retries failures
`Catch`	Handles errors gracefully
`TimeoutSeconds`	Prevents hanging executions

Example with additional configuration:

{
  "ProcessPayment": {
    "Type": "Task",
    "Resource": "arn:aws:states:::lambda:invoke",
    "Parameters": {
      "FunctionName": "processPayment",
      "Payload.$": "$"
    },
    "Retry": [
      {
        "ErrorEquals": ["States.ALL"],
        "IntervalSeconds": 2,
        "MaxAttempts": 3,
        "BackoffRate": 2
      }
    ],
    "Catch": [
      {
        "ErrorEquals": ["States.ALL"],
        "Next": "PaymentFailed"
      }
    ],
    "End": true
  }
}

{
  "ProcessPayment": {
    "Type": "Task",
    "Resource": "arn:aws:states:::lambda:invoke",
    "Parameters": {
      "FunctionName": "processPayment",
      "Payload.$": "$"
    },
    "Retry": [
      {
        "ErrorEquals": ["States.ALL"],
        "IntervalSeconds": 2,
        "MaxAttempts": 3,
        "BackoffRate": 2
      }
    ],
    "Catch": [
      {
        "ErrorEquals": ["States.ALL"],
        "Next": "PaymentFailed"
      }
    ],
    "End": true
  }
}

JSON

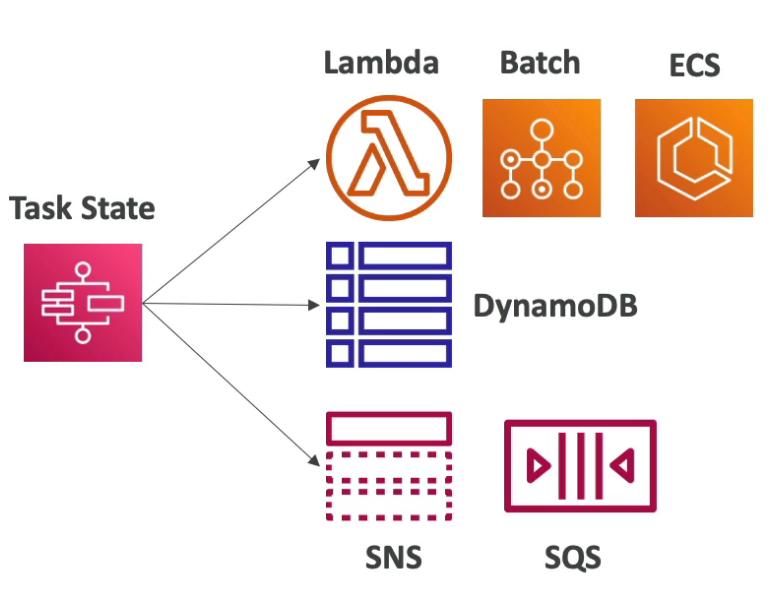

Common AWS Services Used in Task States

Task states can integrate with many AWS services directly.

Start free. No AWS account needed.
ZERO AWS costs.

Download Thrubit and run your first state machine locally in under five minutes. No cloud setup, no IAM policies, no waiting.

Download for Free Book a Demo

AWS Lambda

The most common integration.

{
  "Type": "Task",
  "Resource": "arn:aws:states:::lambda:invoke"
}

{
  "Type": "Task",
  "Resource": "arn:aws:states:::lambda:invoke"
}

JSON

Use Lambda when you need:

Custom business logic
Data transformations
Third-party API calls
Lightweight processing

Amazon SQS

Send or process queue messages.

{
  "Type": "Task",
  "Resource": "arn:aws:states:::sqs:sendMessage"
}

{
  "Type": "Task",
  "Resource": "arn:aws:states:::sqs:sendMessage"
}

JSON

Useful for:

Asynchronous workflows
Decoupled systems
Background jobs

Amazon EventBridge

Publish events to event buses.

{
  "Type": "Task",
  "Resource": "arn:aws:states:::events:putEvents"
}

{
  "Type": "Task",
  "Resource": "arn:aws:states:::events:putEvents"
}

JSON

Ideal for:

Event-driven architectures
Microservices communication
Workflow notifications

Amazon Bedrock

Invoke AI models directly inside workflows.

{
  "Type": "Task",
  "Resource": "arn:aws:states:::bedrock:invokeModel"
}

{
  "Type": "Task",
  "Resource": "arn:aws:states:::bedrock:invokeModel"
}

JSON

Popular use cases:

AI enrichment
Content generation
Classification pipelines
Retrieval augmented generation workflows

Nested Step Functions

Start another workflow from a workflow.

{
  "Type": "Task",
  "Resource": "arn:aws:states:::states:startExecution"
}

{
  "Type": "Task",
  "Resource": "arn:aws:states:::states:startExecution"
}

JSON

Great for:

Modular architectures
Reusable workflows
Large orchestration systems

Tutorial: Creating a Task State

Let’s build a simple Task state that invokes a Lambda function.

Step 1: Create a Lambda Function

Example Node.js Lambda:

exports.handler = async (event) => {
    return {
        message: "Order processed successfully",
        orderId: event.orderId
    };
};

exports.handler = async (event) => {
    return {
        message: "Order processed successfully",
        orderId: event.orderId
    };
};

JavaScript

Deploy the Lambda to AWS.

Step 2: Create the State Machine

Create this ASL definition:

{
  "StartAt": "ProcessOrder",
  "States": {
    "ProcessOrder": {
      "Type": "Task",
      "Resource": "arn:aws:states:::lambda:invoke",
      "Parameters": {
        "FunctionName": "processOrder",
        "Payload.$": "$"
      },
      "OutputPath": "$.Payload",
      "End": true
    }
  }
}

{
  "StartAt": "ProcessOrder",
  "States": {
    "ProcessOrder": {
      "Type": "Task",
      "Resource": "arn:aws:states:::lambda:invoke",
      "Parameters": {
        "FunctionName": "processOrder",
        "Payload.$": "$"
      },
      "OutputPath": "$.Payload",
      "End": true
    }
  }
}

JSON

Step 3: Start an Execution

Example execution input:

{
  "orderId": 1001
}

{
  "orderId": 1001
}

JSON

Expected output:

{
  "message": "Order processed successfully",
  "orderId": 1001
}

{
  "message": "Order processed successfully",
  "orderId": 1001
}

JSON

Understanding Task State Error Handling

Production workflows must handle failures properly.

AWS Step Functions provides built-in retry and catch functionality.

Retry Example

"Retry": [
  {
    "ErrorEquals": ["Lambda.ServiceException"],
    "IntervalSeconds": 1,
    "MaxAttempts": 3,
    "BackoffRate": 2
  }
]

"Retry": [
  {
    "ErrorEquals": ["Lambda.ServiceException"],
    "IntervalSeconds": 1,
    "MaxAttempts": 3,
    "BackoffRate": 2
  }
]

JSON

This automatically retries transient failures.

Catch Example

"Catch": [
  {
    "ErrorEquals": ["States.ALL"],
    "Next": "HandleFailure"
  }
]

"Catch": [
  {
    "ErrorEquals": ["States.ALL"],
    "Next": "HandleFailure"
  }
]

JSON

This redirects execution when errors occur.

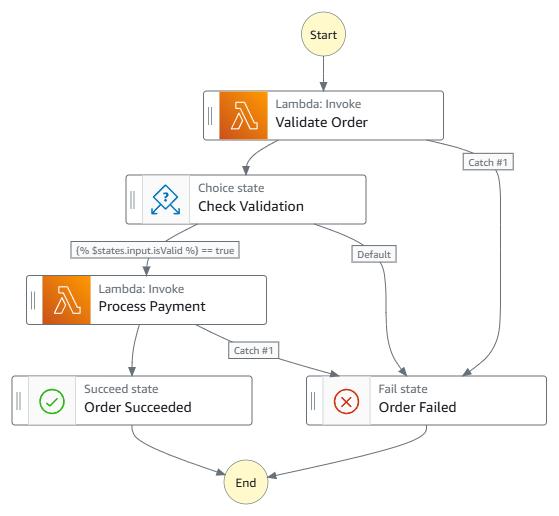

Here is an example of visual debugging and state transitions inside Step Functions workflows:

Synchronous vs Asynchronous Task States

Some Task states wait for completion while others continue asynchronously.

Synchronous Pattern

The workflow waits until the task completes.

Example:

"arn:aws:states:::lambda:invoke"

"arn:aws:states:::lambda:invoke"

JSON

Callback Pattern

The workflow pauses until an external callback returns a task token.

Example:

"arn:aws:states:::sqs:sendMessage.waitForTaskToken"

"arn:aws:states:::sqs:sendMessage.waitForTaskToken"

JSON

This pattern is useful for:

Human approvals
Long-running jobs
External systems
AI review pipelines

Best Practices for Task States

Keep Tasks Focused

Each Task state should handle one responsibility.

Avoid giant Lambda functions that do everything.

Use Retries Carefully

Retries help with transient failures but excessive retries can increase costs and execution time.

Monitor Execution Time

Long-running Task states can become expensive and harder to debug.

Pass Only Necessary Data

Large payloads slow workflows and increase complexity.

Use:

InputPath
ResultPath
OutputPath

to reduce payload size.

Prefer Service Integrations When Possible

Direct integrations reduce Lambda usage and simplify workflows.

For example:

EventBridge integrations
SQS integrations
DynamoDB integrations
Bedrock integrations

often eliminate the need for custom code.

Testing Task States Locally

One of the biggest challenges with Task states is debugging them in the cloud.

Every test execution may involve:

Lambda invocations
Step Functions state transitions
SQS requests
EventBridge events
Bedrock API usage

This can quickly become expensive and slow during development.

Modern orchestration teams increasingly test workflows locally before deploying.

Platforms like Thrubit allow developers to:

Run Step Functions locally
Execute real Lambda functions without deployment

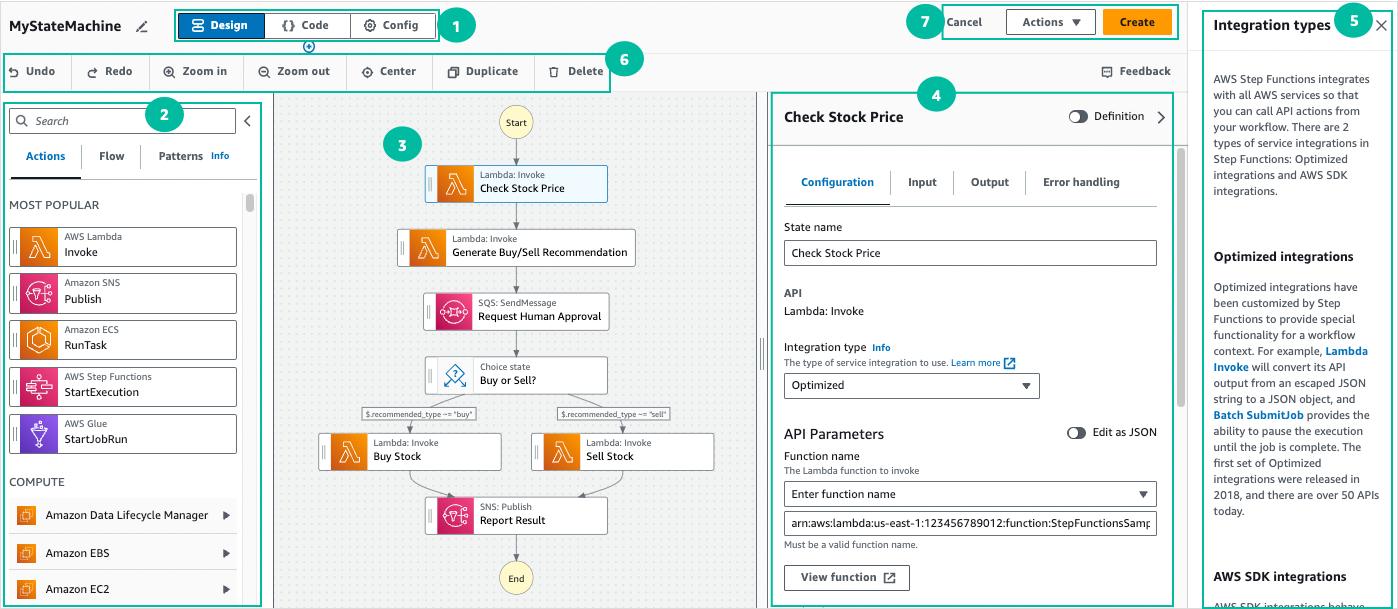

Test Task states visually
Mock AWS integrations
Debug Bedrock, SQS, EventBridge, and DynamoDB interactions
Iterate instantly with ZERO AWS costs during development

This local-first approach dramatically improves workflow development speed while reducing cloud debugging costs.

Why Task States Matter

Task states are the operational core of AWS Step Functions.

They connect workflows to:

Business logic
AI services
Event systems
Queues
APIs
Databases
External platforms

Without Task states, Step Functions would only manage flow control. Task states turn workflows into fully functioning distributed systems.

As organizations continue adopting serverless and event-driven architectures, understanding Task states becomes essential for building scalable AWS workflows.
